Welcome to the Toy Box page! • This Toy Box is styled to serve as both a bench seat and a toy box • It's a sturdy design that your children and grandchildren should be able to use for years • Download free instructions, pictures, and references to help you build your own toy box

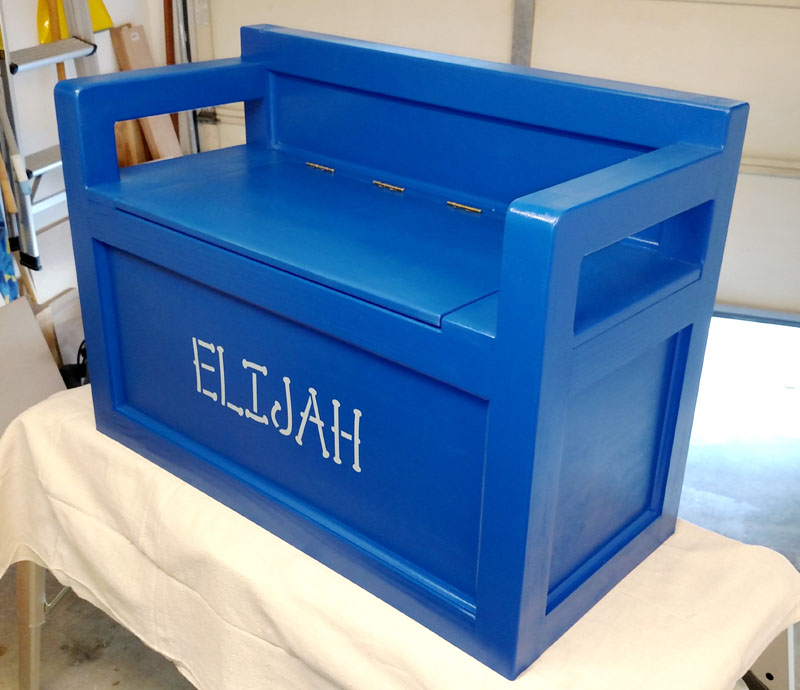

Closed Toy Box

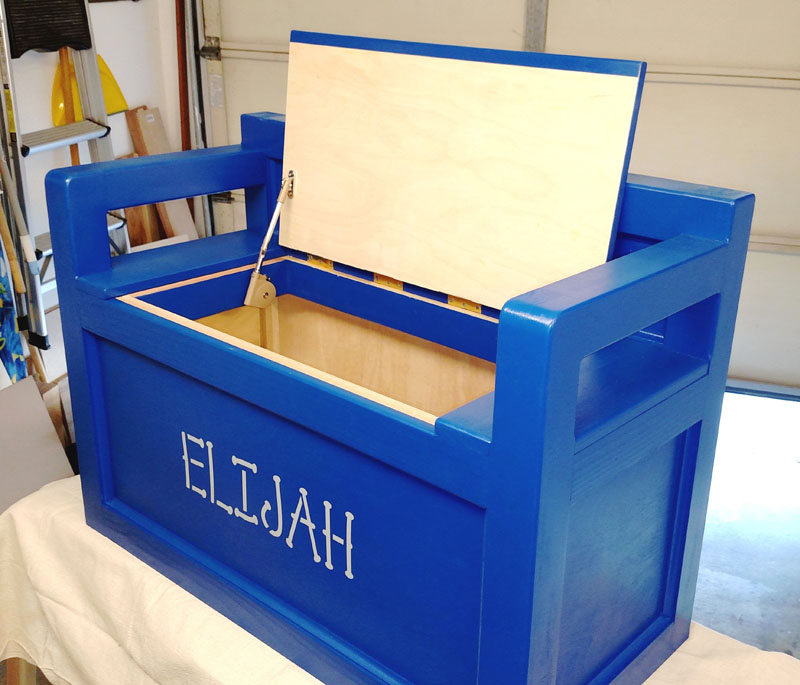

Opened Toy Box

The toy box has a footprint of 36" x 17". The seat is 18" high. The arms are 6" above the seat. The backrest is 8" above the seat.

A SOFT-CLOSE MECHANISM is used to help prevent injury to little fingers.

Maybe you can use the ideas and information provided here and in the free downloadable file to build your own version of the toy box. If you think you might want to build it, BE SURE TO READ THE "INSTRUCTIONS.PDF" FILE that's included in the ZIP file.

The ZIP file contains all of the pictures, INSTRUCTIONS.PDF, SketchUp design file "Toy_Box_12.skp", and PDF design file "Toy_Box_12.pdf":

Click Here for the Downloadable ZIP file (3.11MB): Toy_Box.zip

More Pictures of the Toy Box

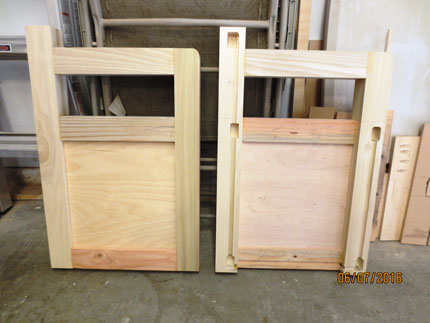

View of the End Assemblies

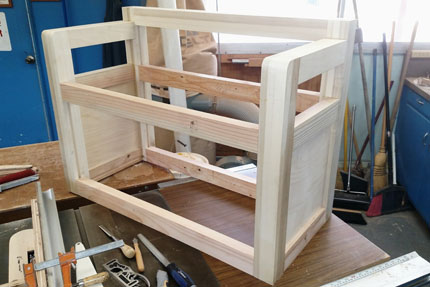

Temporary Assembly of the Skeleton

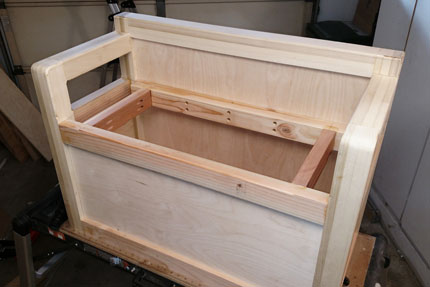

Toy Box Assembly with No Cover on Top

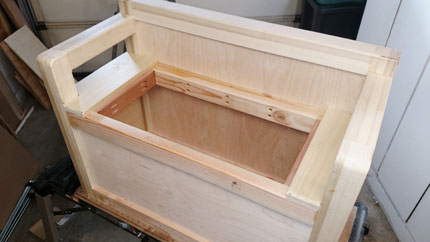

Toy Box Assembly with Partial Cover on Top

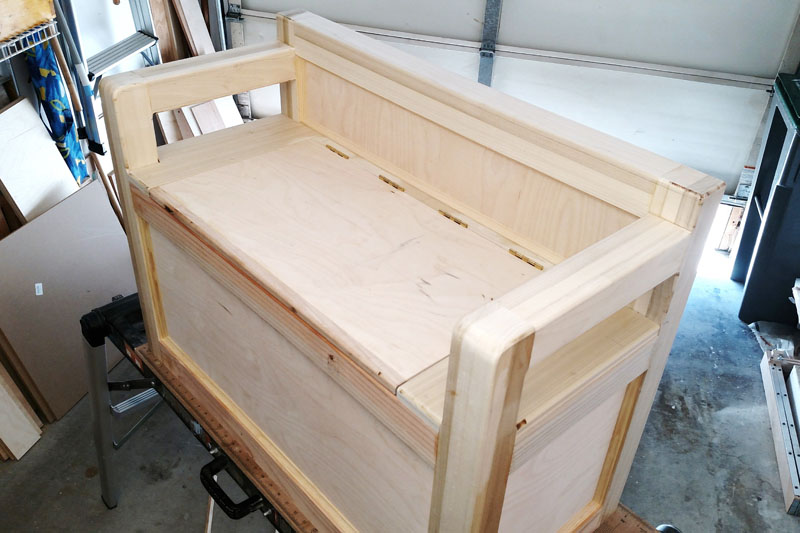

Closed Toy Box before Paint

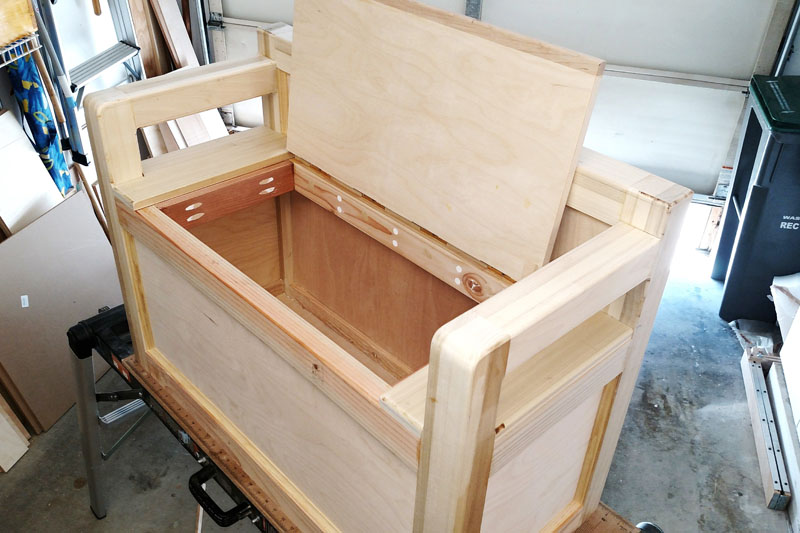

Opened Toy Box before Paint

The ZIP file contains all of the pictures, INSTRUCTIONS.PDF, SketchUp design file "Toy_Box_12.skp", and PDF design file "Toy_Box_12.pdf":

Click Here for the Downloadable ZIP file (3.11MB): Toy_Box.zip
